Special machinery for the production and processing of filters and filtration products.
GFM develops special machinery for the production and processing of filters, such as spiral winding systems for membrane filters and customised turnkey solutions for filter manufacturers.
Thanks to our modular design, we are capable of automating the production of even the most complex filtration products by combining individual functions into a complete solution. In the advanced world of membrane technology, there is a growing interest in specialised membranes tailored to specific applications. To wind these membranes, specialised winding systems are required, which GFM Spezialmaschinenbau offers. With our spiral winding system, you can efficiently and economically produce membranes for various filtration methods—such as reverse osmosis, microfiltration, ultrafiltration, and nanofiltration.
> Infoflyer Download
GFM Spezialmaschinenbau offers you customised solutions for your spiral winding system
The Process of Membrane Filtration and the Various Forms of Membrane Filtration
Membrane filtration is essentially a process that allows certain substances to pass through a barrier while blocking others. In the case of water, this means that clean water passes through the barrier, while impurities or harmful microorganisms are removed. Among the various methods of water treatment, membrane filtration stands out as a particularly economical and efficient approach.
Micro- and ultrafiltration
In the processes of microfiltration (MF) and ultrafiltration (UF), contaminated liquids are filtered by retaining particles larger than the membrane’s pores. The purity of the resulting flow depends on both the initial contaminants and the pore sise of the membrane used.
Reverse Osmosis and Nanofiltration
The processes of reverse osmosis (RO) and nanofiltration (NF) are similar to microfiltration and ultrafiltration; however, pressure is applied to the liquid to force it through the semipermeable membrane. Reverse osmosis and nanofiltration can also filter out smaller molecules, such as pesticides or agricultural chemicals.
The Advantages of a Spiral Winding System
A spiral winding system offers a clear advantage over other filtration techniques: an exceptionally high packing density with reduced energy consumption. The design of a winding module is based on several membrane pockets, with spacers placed between them. These are spirally wound around the central permeate tube. Thanks to the precise construction, where the membrane pockets are sealed on three sides, the permeate exits exclusively on the side of the permeate tube. The appropriate spacer is selected depending on the viscosity of the medium to be filtered.
Our Special Machinery for Filter Production

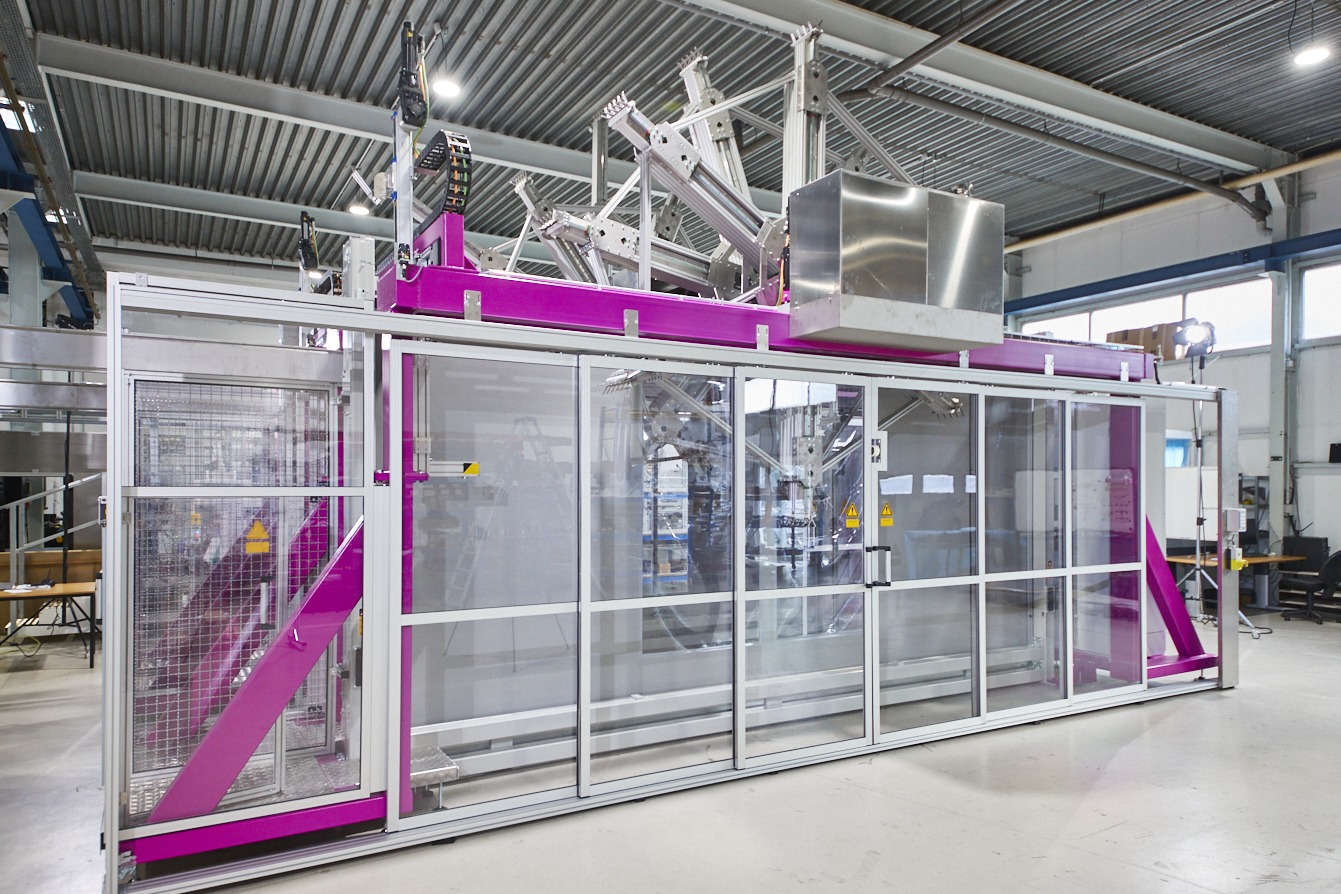

Special Winding Machines for Membrane Filtration Applications
With GFM machines, you produce high-quality membranes and filters perfectly tailored to your needs, production processes, and application areas: from desalination processes to the food, beverage, dairy, biotechnology, and pharmaceutical industries.
Application examples
From the food and beverage industry to biotechnology, our spiral winding machine spans a broad range of application areas. Examples include the standardisation and concentration of milk and whey, cheese production, clarification of brine, as well as processes such as fruit juice production, egg processing, gelatin, blood, starch, and yeast preparation, as well as the separation of microorganisms and cells. Wine filtration is also another key application area.
Every filtration challenge—whether reverse osmosis, microfiltration, ultrafiltration, or nanofiltration—comes with unique requirements, and we are here to offer our assistance.

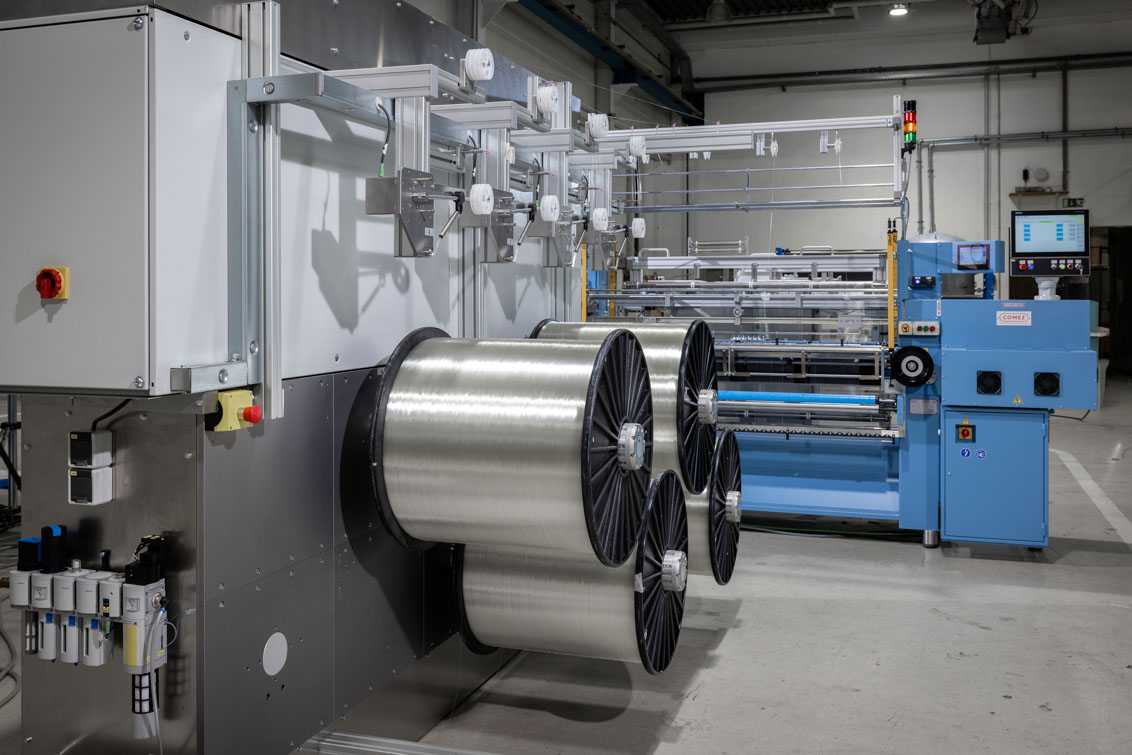

Additional Winding Machines and Special Machinery for Filter Manufacturers
Whether you are looking for specialised winding solutions or other customised machines for different applications, we are your reliable partner when it comes to machinery construction. Learn more about our various machines and their applications.
ROLL OUT YOUR IDEAS! – Our machines in action
To give you some insight into the functionality and versatility of our machine, we have created a detailed YouTube video. In this video, we take you behind the scenes at GFM and showcase our state-of-the-art filtration machine in action.

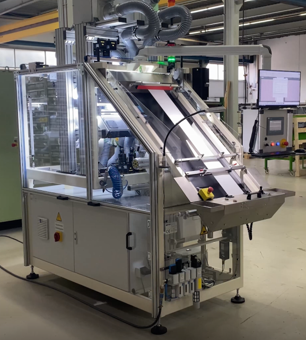

Semi-automatic permeat tube winding system
Coffee Filter Production Machine
